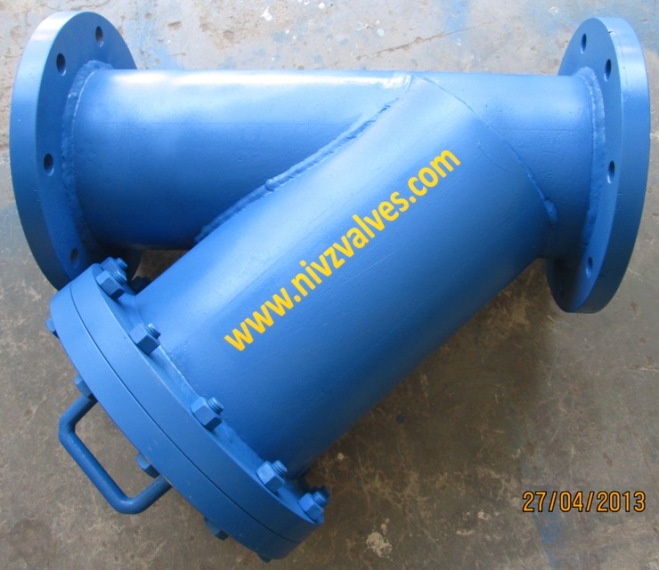

Fabricated Y Type Strainer

Fabricated Y Type Strainer Manufacturer - Exporter, Supplier, Stockist

Y Shape Fabricated Strainer and Filter Design Standard - ASME Sec. VIII
End Connection - Flanged End / Butt Weld End

Pressure Rating - 150# / 300# / PN10 / PN16 / PN25 / PN 40 / PN64

Bolted Cover Fabricated Y Type Strainer Flanged End, Rating - Class 150, Model Series: FYFS31
Bolted Cover Fabricated Y Type Strainer, Flanged End, Rating - Class 300, Model Series: FYFS32

Fabricated Y Strainer (Quick Open/Bolted Cover/Davit Arm)Manufacturing Size Range:  DN50/50mm/2”/Two Inch, DN65/65mm/2-1/2”/Two and Half Inch, DN80/80mm/3”/Three Inch, DN100/100mm/4”/Four Inch, DN125/125mm/5”/Five Inch, DN150/150mm/6”/Six Inch, DN200/200mm/8”/Eight Inch, DN250/250mm/10”/Ten Inch, DN300/300mm/12”/Twelve Inch, DN350/350mm/14”/Fourteen Inch, DN400/400mm/16”/Sixteen Inch, DN 450/450mm18”/Eighteen Inch, DN500/500mm/20”/Twenty Inch, DN550/550mm/22”/Twenty Two Inch, DN600/600mm/24”/Twenty Four Inch Size and big more large size of fabricated y type strainer can manufacture and supply on order basis.


Fabricated Y Type Strainer

A Strainer is basically mechanical product which has a provision to remove hard particle of pipe line subject to selection of perforated punched hole sheet or wire mesh degree of filtration, pipe line process media can be in form of liquid or gas. Y Type strainer is a one types of filter – strainer which uses to remove a foreign particle of industrial process line.

Fabricated Body of Y strainer is normally of carbon steel  or stainless steel pipes or plates in various material grades with flanged end and butt weld end connection. Fabricated Y strainers is specialy for high filtration area and less presssure drop.

Nivz bolted cover fabricated Y Type strainer has low pressure drop due to higher flow area through screen. Fabricated body Y Strainer used for the removal of foreign bodies in pipe line and use line trouble free service and freedom costly repairs or replacement for large area straining perforated screen lined with wire mesh can be used.

Advantages of use Y Strainer is to save and increase a life of Pump, Pressure Equipment, Mechanical Seals, Expensive Control Valves, Pressure Reducing Valve, Flow Meter and gives foreign particle less final product. An advantage to Y strainer is, it can be mount in either vertical or horizontal but in both case cover portion must be on down side to collect foreign particle and easy to clean at time of cover opening.

Nivz each Bolted Cover design Y Strainer have provision of blow down plug at cover which allow to clean cylindrical screen element without removing from body and without disturbing a process.


Selection of wire mesh size is very important for a life of Y Strainer element and process equipment. Over fine mesh results frequent clogging, overload on wire mesh element, reduce life of element and pressure drop increase of pipe line. In case of course selection it damage costly equipment and meaningless to install strainer.

Nivz Valves & Automation is Fabricated Y Type Strainer Flanged End Manufacturer - Exporter, Supplier, Stockist, SS304L, 316L Super Duplex Steel, Alloy 20 Material Fabricated Body Y Type Strainer, Lower Pressure Drop Fabricated High Performance Fabricated Y Type Strainer, Bolted Cover and Drain Vent Arrangement Provision, Quick Open Type Strainer Manufacturers.

Nivz Valves An ISO 9001:2015 Certfied company Fabricated Y Type Strainer Manufacturer - Exporter, Supplier, Stockist, Importer and available in ready stock.


Design & Testing International Standard of Y Type Strainer

Design Standard : ASME Sec. VIII - Div. 1
Inspection & Testing Standard : BS EN ISO 12266 - I (BS 6755 - I) / API 598
Flange To Flange Distance : DIN EN 558-1 / Mfg. Std.
End Connection : Flanged End to ANSI B 16.5, Class 150 / 300 / 600
  : BS 10 Table D / E / F / H
  : PN 6 / PN 10 / PN 16 / PN 25 / PN 40 / PN 64
  : DIN Standard / JIS Standard / IS Standard
  : Butt Weld End to ANSI B 16.25
Manufacuring Size Range : 2" (DN50) to 24"(DN 600)
Pressure Rating of Valve : 150# / 300#
  : PN 10 / PN 16 / PN 25 / PN 40 / PN 64

MOC (Bill of Material - BOM) for Bolted Cover Fabricated Y Strainer

Body Shell, Flanges & Cover : ASTM A 53 GR. B Carbon Steel ERW Pipe
  : ASTM A 106 GR. A/B/C Carbon Steel Seamless Pipe
  : ASTM A 333 GR. 6 Low Temperature Carbon Steel Pipe
  : API 5L Pipe
  : ASTM A 516 GR. 60/70 Carbon Steel Plate
  : ASTM A 105 (Forged Carbon Steel)
  : IS 1239 MS ERW Pipe
  : IS 3589 MS ERW Pipe
  : IS 2062 GR. A/B MS Plate
  : ASTM A 312 TYPE 304/316 (Stainless Steel 304/316 Pipe)
  : ASTM A 312 TYPE 304L/316L (Stainless Steel 304L/316L Pipe)
  : ASTM A 240 TYPE 304/316 (Stainless Steel 304/316 Plate)
  : ASTM A 240 TYPE 304L/316L (Stainless Steel 304L/316L Plate)
  : ASTM A 182 F304/F316 (Forged Stainless Steel 304/316)
  : ASTM A 182 F304L/F316L (Forged Stainless Steel 304L/316L)
  : ASTM / ASME SA 240 - S 31803/S 32205/S 32550/S32750/S 32760 (Duplex Steel Plates)
  : ASTM / ASME SA 790 - S 31803/S 32205/S 32550/S32750/S 32760 (Duplex Steel Pipes)

Mesh / Filter Element : ASTM A 276 T - 304 / 316 (SS 304 / SS 316)
  : ASTM A 276 T - 304L / 316L (SS 304L / SS 316L)
  : Brass / Alloy 20
  : Duplex Steel / Super Duplex Steel

Gasket : SS 304/316 Spiral Wound with CAF/Graphite Filled
  : Graphited Asbestos wire based
  : CAF - Compressed Asbestos Fibre
  : Graphite Tensed Gasket
  : PTFE

Bolts / Stud & Nuts : ASTM A 193 GR. B7 / A 194 GR. 2H
  : S.S. 304/316/304L/316L



Nivz Valves & Automation, INDIA.
