Three Way Globe Valve, Pneumatic, Motorized, Electrical Actuator Operated 3 Way Globe Valve, Diaphragm Actuator Operated 3 Way Valve, Piston Cylinder Operated 3 Way Globe Valve, Spring and Diaphragm Actuated Three Way Globe Valve, Motorized Three Way Globe Valve, Electrical Actuated Three Way Globe Valve.
Three Way Globe Valve Body as per Design Standard BS 1873/ASME B 16.34/DIN EN 13789
End Connection - Flanged End, Pressure Rating - 150# / 300# / 600# / PN16 / PN25 / PN 40 / PN64 / PN100
Three Way Globe Valve Operation - Hand Wheel / Pneumatic Cylinder / Spring and Diaphragm Type Actuator Operatd / Electrical Actuator Operated / Motorized Actuated
Spring and Diaphragm Actuator Operated 3 Way Pneumatic Globe Valve (Diverting Type) - Model: 3WDCV-D
Spring and Diaphragm Actuator Operated Pneumatic 3 Way Globe Valve (Mixing Type) - Model: 3WDCV-M
Motorized Electrical Actuator Operated 3 Way Globe Valve (Diverting Type) - Model: MOV15/3WD
Motorized Electrical Actuator Operated 3 Way Globe Valve (Mixing Type) - Model: MOV15/3WM
Pneumatic Cylinder Actuator Operated 3 Way Globe Valve (Diverting Type) Model Series: 3WPCV-D
Pneumatic Cylinder Actuator Operated 3 Way Globe Valve (Diverting Type) Model Series: 3WPCV-M
Three Way Globe Valve Manufacturing Size Range: DN25/25mm/One Inch, DN40/40mm/One and Half Inch, DN50/50mm/2”/Two Inch, DN65/65mm/2-1/2”/Two and Half Inch, DN80/80mm/3”/Three Inch, DN100/100mm/4”/Four Inch, DN125/125mm/5”/Five Inch, DN150/150mm/6”/Six Inch, DN200/200mm/8”/Eight Inch, DN250/250mm/10”/Ten Inch, DN300/300mm/12”/Twelve Inch size and more can manufacture and supply on request.
|

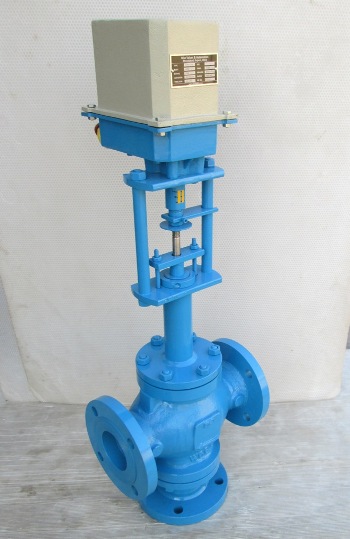

Motorized / Electrical Actuator Operated 3 Way Globe Valve |

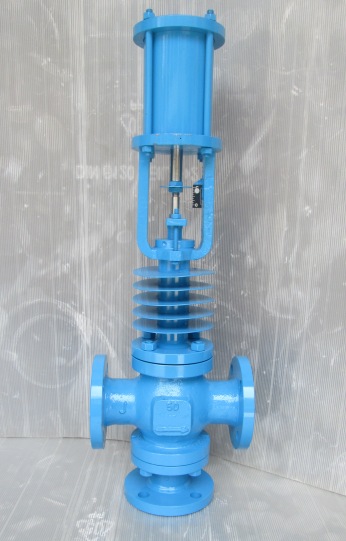

Pneumatic Cylinder Actuator Operated 3 Way Globe Valve |

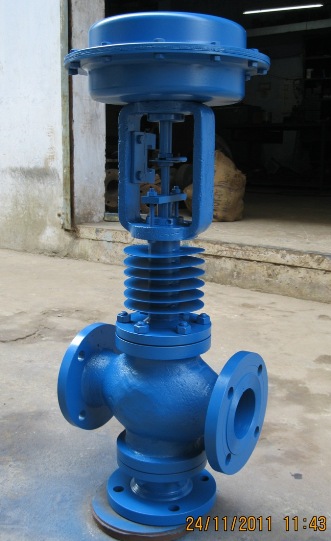

Spring and Diaphargm Type Actuator Operated 3 Way Globe Valve |
Nivz make steam, water, thermicl fluid hot oil, chilled water, cooling waterm, gas, chemical application Three Way Globe Valves are Bolted Bonnet Construction, Flanged End, Rating Class 150/300/600.
3 Way Globe valve body seat ring is shoulder type, threaded body seat ring which has large taper area that is for ample seating. Two nos. slots are provided on body seat ring, which is for easy removal for servicing at site. Welded type seat ring or Integral seat ring are also available in on request.
All Globe Valve stem is made from solid one piece construction. The standard range of Nivz 3 Way Globe Valve is sizes from 1/2" (DN15) to 12” (DN300).
We are manufacturers and exporters of Mixing Type 3 Way Valve, Diverting Type 3 Way Valve, 3 Way Ball Valve, L Port 3 Way Ball Valve, T Port 3 Way Ball Valve, Three Way Globe Valves. Our manufacturing range covers, Steam Globe Valve, Jacketed Globe Valve, Extended Bonnet Globe Valves in material of ASTM A 216 GR. WCB/ASTM A 352 GR. LCB/LCC/ASTM A 351 GR. CF8/CF8M/CF3/CF3M/CN7M Globe Valve, Duplex Steel, Hastelloy, Alloy 20 Globe Valve Exporter.
Design & Testing International Standard of 3 Way Globe Valve
| Design Standard | : | BS 1873 / ASME B 16.34 / DIN EN 13789 Standard |
| Inspection & Testing Standard | : | BS EN ISO 12266 - I (BS 6755 - I) / API 598 / ISO 5208 |
| Flange To Flange Distance | : | As Per ANSI B 16.10 / BS 2080 |
| End Connection | : | Flanged End to ANSI B 16.5, Class 150 / 300 / 600 |
| : | BS 10 Table D / E / F / H | |
| : | PN 6 / PN 10 / PN 16 / PN 25 / PN 40 / PN 64 | |
| : | DIN Standard / JIS Standard / IS Standard | |
| : | Screwed - Threaded End to ANSI B 1.20.1 | |
| : | Socket Weld End to ANSI B 16.11 | |
| : | Butt Weld End to ANSI B 16.25 | |
| Manufacuring Size Range | : | 1/2" (DN15) to 12"(DN 300) |
| Pressure Rating of Valve | : | 150# / 300# / 600# / 800# |
| : | PN 10 / PN 16 / PN 25 / PN 40 / PN 64 | |
| Valve Operation | : | Manual Hand Wheel / Worm-Gear Actuator Operated |
| : | Pneumatic Cylinder Actuator / Spring & Diaphragm Type Actuator | |
| : | Motorized Electrical Actuated | |
| Valve Seat Leakge | : | Leakage Class IV (For metal to metal seated valves) |
MOC (Bill of Material - BOM) for 3 Wa Globe Valve
| Body & Bonnet | : | ASTM A 126 GR. B / IS 210 GR. FG 200/220/260 (Cast Iron) / Ductile Iron / Nodular C.I. |
| : | ASTM A 216 GR. WCB (Cast Carbon Steel) | |
| : | ASTM A 351 GR. CF 8 / CF 8M (SS 304 / SS 316) | |
| : | ASTM A 351 GR. CF 3 / CF 3M (SS 304L / SS 316L) | |
| : | ASTM A 351 GR. CN7M / ASTM A351 Gr. CF8C | |
| : | ASTM A351 Gr. CD4Mcu / ASTM A351 Gr. CK3MCuN | |
| : | ASTM A352 Gr. LCA / LCB / LCC | |
| : | ASTM A217 Gr. WC1 / WC6 / WC9 / C5 / C12 | |
| : | ASTM A494 Gr. CW6MC / CW2M / CY40 / CU5MCuC | |
| : | NACE MR0175 / NACE MR | |
| Trims | : | ASTM A 276 T - 304 / 316 (SS 304 / SS 316) |
| : | ASTM A 276 T - 304L / 316L (SS 304L / SS 316L) | |
| : | ASTM A 276 T - 410 (S.S. 410 - 13% Cr. Steel) | |
| : | ASTM A 182 GR F6A / Half - Full Stellited | |
| : | Alloy 20 / Hastelloy C22 / C276 | |
| : | Duplex Steel / Super Duplex Steel | |
| Gland Packing | : | Grafoil Ring / Pure Black Carbon Graphite Ring |
| : | Inconel Wire based Graphite Asbestos cur braided ring | |
| : | PTFE Impregnated Asbestos Gland Rope | |
| : | PTFE Virgin / 25% Glass Filled Teflon / Carbon Filled Teflon - "V" Ring Set | |
| Gasket | : | SS 304/316 Spiral Wound with CAF/Graphite Filled |
| : | Graphited Asbestos wire based | |
| : | CAF - Compressed Asbestos Fibre | |
| : | Graphite Tensed Gasket | |
| Bolts / Stud & Nuts | : | ASTM A 193 GR. B7 / A 194 GR. 2H |
| : | S.S. 304/316/304L/316L | |
| Hand Wheel | : | Ductile Iron / S.G. Iron / Carbon Steel |
