Forged Steel Ball Valve Manufacturer, A 105, F304L, F316L Material, Full Port, Regular Port Ball Valve Exporter, Stockist, Supplier.

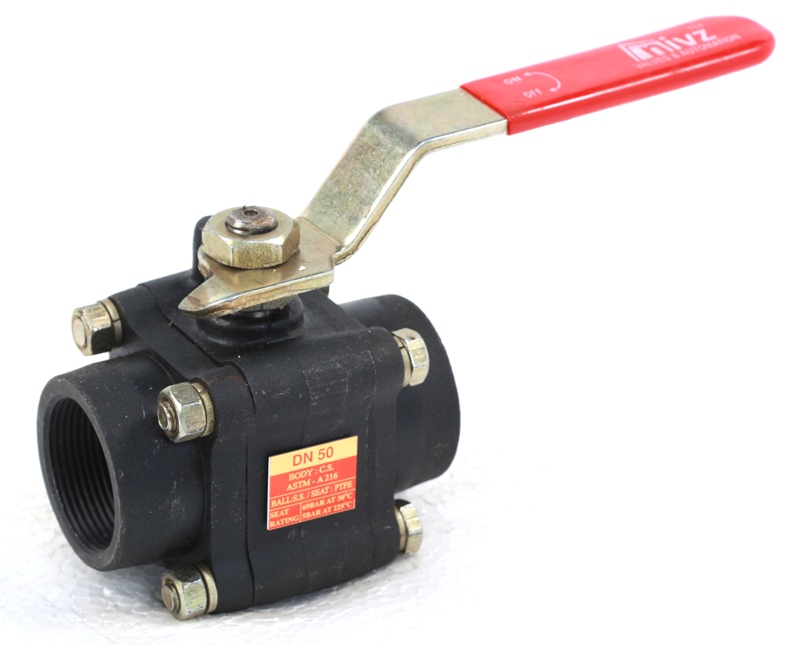

High Pressure Forged Steel Ball Valve
Three Piece Design Regular Bore Forged Ball Valve
End Connection - Threaded / Screwed End (BSP/NPT) Female / Socket Weld / Butt Weld End
Pressure Rating - Class 800
Forged Valve Model Series: NV44FS
|
|
Nivz Valves and Automatino offer High quality Forged Steel Ball Valve as per international design and standard to get 100% Client Satisfaction and repeat order with total interchangeability, superior quality, workmanship & service. These Ball Valves come in Three Piece Design (1/2” to 2”) to suit various industrial critical, non-critical applications and pressure rating up to 800 class in regular (reduce) bore design. Nivz P.T.F.E. soft seated Forged Steel Ball Valve gives Zero Leakage, Tight Shut-Off and Low Torque with easy smooth operation at temperature ranging from -20°C. to +200°C. Electro-Polished, Buff Finish & Ultra clean valve also provided for Food & Pharmaceutical Industries on request. Forged Ball Valve body material choices are ASTM A 105 (Forged Carbon Steel), ASTM A 182 F 304 (Forged Stainless Steel 304), ASTM A 182 F 316 (Forged Stainless Steel 316L), ASTM A 182 F 304L (Forged Stainless Steel 304L), ASTM A 182 F 316L (Forged Stainless Steel 316L) and other grades can available on request. Features
|
Forged Steel Ball Valve Seat, Seal & Gland Packing
Nivz Ball Valves are also available with different type of Seat, Seal & Packing material such as P.T.F.E. (Virgin) / Glass Filled P.T.F.E. / Carbon Filled P.T.F.E. / Graphite (Grafoil) / PEEK to suit special requirement of client.
We also offer a Forged Steel Ball Valve with Electro-Pneumatic Actuator Operated, Single Acting Spring Return Actuator Operated Forged Steel Ball Valve, Double Acting Pneumatic Acuated Forged Steel Ball Valve, Electrical Actuator operated Forged Steel Ball Valve, Motorized Forged Steel Ball Valve, High Pressure Ball Valve Manufacturers, Forged High Pressure Ball Valve suitable for pressure up to 10000 psig.
Our manufacturing range also covers a Fire Safe Design Forged Ball Valve. Our Ball Valves design is as per BS EN ISO 17292, Testing Standard as per API 607/API 6FA/BS 6755-II.
Nivz a Low torque, high performance, economize type Forged Steel Ball Valve Manufacturer, A 105, F304L, F316L Material, Full Port, Regular Port Ball Valve Exporter, Stockist, Supplier.
Design & Testing International Standard of Forged Steel Ball Valve
| Design Standard | : | BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / BS EN 1983 / ASME B 16.34 |
| Inspection & Testing Standard | : | BS EN ISO 12266 - I (BS 6755 - I) |
| Flange To Flange Distance | : | As Per ANSI B 16.10 / Tailor Made on Request |
| End Connection | : | Screwed / Threaded End to ANSI B 1.20.1 |
| : | Socket Weld End to ANSI B 16.11 | |
| : | Butt Weld End to ANSI B 16.25 | |
| Manufacuring Size Range | : | 1/2" (DN15) to 2"(DN 50) |
| Pressure Rating of Valve | : | 800# |
| Valve Operation | : | Manual Hand Lever / Worm-Gear Actuator Operated |
MOC (Bill of Material - BOM) for Forged Steel Ball Valve
| Body & End Piece | : | ASTM A 105 - Forged Carbon Steel |
| : | ASTM A 182 F 304 / F 304L - Forged Stainless Steel 304 / 304L | |
| : | ASTM A 182 F 316 / F 316L - Forged Stainless Steel 316 / 316L | |
| : | ASTM A 182 F 11 / F 22 - Alloy Steel | |
| Ball | : | ASTM A 351 GR. CF 8 / CF 8M (SS 304 / SS 316) |
| : | ASTM A 182 F304 / F316 (SS 304 / SS 316) | |
| : | ASTM A 351 GR. CF 3 / CF 3M (SS 304L / SS 316L) | |
| : | ASTM A 182 F304L / F316L (SS 304L / SS 316L) | |
| Stem | : | ASTM A 276 T - 304 / 316 (SS 304 / SS 316) |
| : | ASTM A 276 T - 304L / 316L (SS 304L / SS 316L) | |
| : | ASTM A 276 T - 410 (SS 410) | |
| Ball Seat & BodySeal | : | PTFE Virgin / 25% Glass Fillted Teflon - GFT / Carbon Filled Teflon - CFT |
| : | PEEK / Delrin / Grafoil - Graphite Ring | |
| Gland Packing | : | PTFE Virgin / 25% Glass Fillted Teflon - GFT / Carbon Filled Teflon - CFT |
| : | Grafoil - Graphite Ring | |
| Stud & Nut | : | ASTM A 193 GR. B7 / A 194 GR. 2H |
| : | S.S. 304 / S.S. 316 |
Click here to download drawing of Forged Steel Ball Valves
