Single Piece Heavy Design Casted Body, Design as per ASME B 16.34 Standard
End Connection - Flanged End
Pressure Rating - 150# / PN10 / PN16

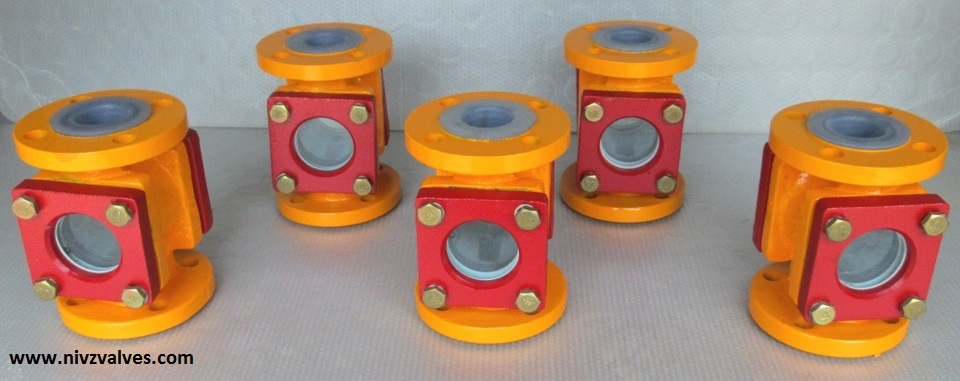

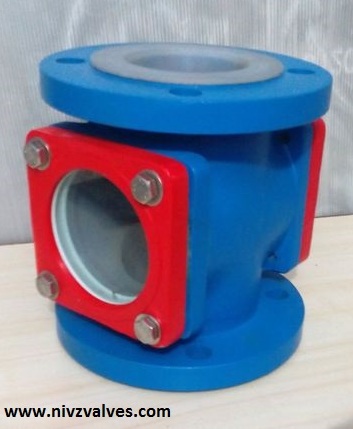

PFA - FEP - Teflon® - PTFE Lined Double Window Type Sight Flow Indicator Flanged End, Rating Class 150 - Model Series: PTSDW10
FEP, PFA, PTFE Lined Sight Flow Indicator Manufacturing Size Range: DN25/25mm/1"/One Inch, DN32/32mm/1-1/4"/One and Quarter Inch, DN40/40mm/1-1/2"/One and Half Inch, DN50/50mm/2”/Two Inch, DN65/65mm/2-1/2”/Two and Half Inch, DN80/80mm/3”/Three Inch, DN100/100mm/4”/Four Inch, DN125/125mm/5”/Five Inch and DN150/150mm/6”/Six Inch Size.
Nivz Valves and Automation a eading Manufacturers and Exporters of PTFE / FEP / PFA / Teflon® lined Sight Flow Indicator with Double Window which available from 1”(25NB) to 6”(150NB). We do manufacturing, exporting and Supplying PTFE-FEP-PFA-Teflon Lined® Double Window Type Sigh Glass in various grade of lining to suit temperature application in Flanged End Connection.
Our manufacturing range of PFA-FEP-PTFE Lined Sight Flow Indicator used for corrosion & acidic application.
FEP-PFA-PTFE Lined Jacketed Sight Flow Indicator can install in either Horizontal or Vertical Line as per requirement.
Wide range of Body Material selection available like Grey Cast Iron, S.G. Iron, Malleable Iron, Ductile Iron, Cast Carbon Steel, Cast Stainless Steel 304 & 316 along with PTFE, PFA, FEP, Teflon® lining. Nivz PTFE Lined Sight Flow Indicator face to face (flange to flange distance) dimension is as per ASME B 16.10 standard and flange drilling as per ASME B16.5, 150 Class.
Nivz a #1 Quality FEP, FPA, PTFE Lined Sight Flow Indicator Manufacturer, Exporter, Supplier, Stockist. Mostly PTFE Lined Sight Flow Indicator available in Ready Stock.
Design & Testing International Standard of FEP-PFA-PTFE Lined Sight Flow Indicator
| Design Standard | : | ASME B 16.34 |
| Inspection & Testing Standard | : | BS EN ISO 12266 - I (BS 6755 - I) / API 598 / ISO 5208 |
| Flange To Flange Distance | : | As Per ASME B 16.10 / DIN EN 558-I |
| End Connection | : | Flanged End to ASME B 16.5, Class 150 |
| : | BS 10 Table D / E / F / H | |
| : | PN 6 / PN 10 / PN 16 | |
| : | DIN Standard / JIS Standard / IS Standard | |
| Manufacuring Size Range | : | 1" (DN25) to 6"(DN 150) |
| Pressure Rating of Valve | : | 150# / PN10 / PN16 |
MOC (Bill of Material - BOM) for FEP-PFA-PTFE Lined Sight Flow Indicator
| Body | : | ASTM A 126 GR. B / IS 210 GR. FG 200/220/260 (Cast Iron) / Ductile Iron / Nodular C.I. |
| : | ASTM A 216 GR. WCB (Cast Carbon Steel) | |
| : | ASTM A 351 GR. CF 8 / CF 8M (SS 304 / SS 316) | |
| : | ASTM A 351 GR. CF 3 / CF 3M (SS 304L / SS 316L) | |
| : | ASTM A 351 GR. CN7M / ASTM A351 Gr. CF8C | |
| : | ASTM A351 Gr. CD4Mcu / ASTM A351 Gr. CK3MCuN | |
| : | ASTM A352 Gr. LCA / LCB / LCC | |
| : | NACE MR0175 / NACE MR | |
| Ball | : | Solid PTFE |
| Body Lining | : | PTFE / FEP / PFA / Teflon® |
| Seat | : | PTFE Virgin / 25% GFT / CFT |
| Lining Thickness | : | 3.0mm Minimum |
| Body Lining Test | : | Spark Test at 15 KV DC |
Teflon® is registered trademark of M/s. E.I. Dupont

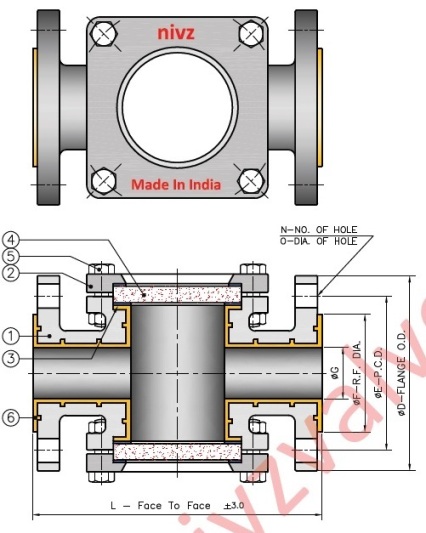

Drawing / Dimensions of FEP-PFA-PTFE Lined Sight Flow Indicator
