Pot Type Simplex Basket Strainer Manufacturer, Cast Steel Body Basket Strainer Exporter, Supplier, Stockist, Importer, Pot Type Strainer - Filters.
Basket Strainer and Filter Design Standard - ASME B 16.34
End Connection - Flanged End
Pressure Rating - 150# / PN16 / PN25

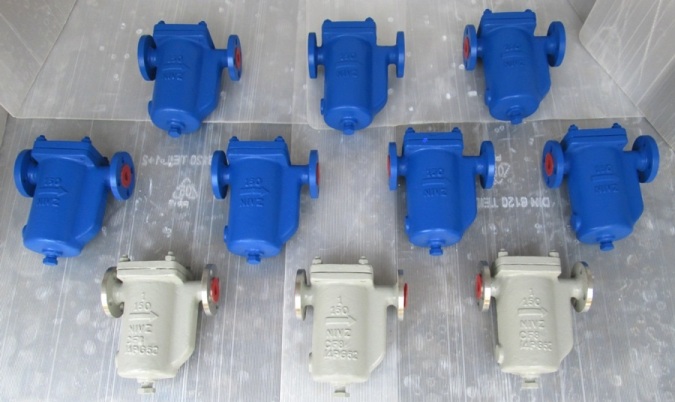

Pot Type Basket Strainer Flanged End, Rating - Class 150, Model Series: CSBS91
Pot Type Simplex Basket Strainer Manufacturing Size Range: DN25/25mm/One Inch, DN40/40mm/One and Half Inch, DN50/50mm/2”/Two Inch, DN65/65mm/2-1/2”/Two and Half Inch, DN80/80mm/3”/Three Inch, DN100/100mm/4”/Four Inch, DN125/125mm/5”/Five Inch, DN150/150mm/6”/Six Inch, DN200/200mm/8”/Eight Inch and big more large sizeof fabricated y type strainer can manufacture and supply on order basis.
 |
Nivz Pot Type Casted Body Basket strainer remove damage causing particulate matter from the process media, protecting system components such as flow meters, pumps, mechanical seals and spray nozzles. The particulate matter is captured in the strainer basket. The line is then temporarily shut down and the basket removed for cleaning or replacement. Nivz Valves & Automation manufacturing Basket Type construction with suitable material. Basket filter provide ease of cleaning the element without interruption to the process. Simplex basket filters in cast construction are called pot strainers or bucket strainer. Filters are manufactured up to 8” NB (DN200) size and filtration down up to 5 micron. Low press drop, large dirt holding capacity, ease & low cost of maintenance are some special features of Flair Basket Filters. These strainers reduce downtime for cleaning due to their construction of bolted cover and easy removal of screen. Self cleaning type basket filter also do manufacturing by Nivz Valves & Automation. Nivz Valves a leading Pot Type Simplex Basket Strainer Manufacturer, Cast Steel Body Basket Strainer Exporter, Supplier, Stockist, Importer, Pot Type Strainer - Filters. |
Salient Features of Pot Type Simplex Basket Strainer (Cast Body)
- Compact Size and Medium weight
- Large dirt holding capacity, long cleaning cycle time.
- Low pressure drop across the filter
- Adequate strength of element and housing
- Permits rapid servicing i.e. ease of cleaning or replacing the element
- Low cost – Initial as well as service cost
- Component or parts suitable for and compatible with hydraulic fluid concerned.
- Interchangeability of component with another of same type.
Design & Testing International Standard of Basket Strainer
| Design Standard | : | ASME B 16.34 |
| Inspection & Testing Standard | : | BS EN ISO 12266 - I (BS 6755 - I) / API 598 |
| Flange To Flange Distance | : | Mfg. Std. |
| End Connection | : | Flanged End to ANSI B 16.5, Class 150 / 300 / 600 |
| : | BS 10 Table D / E / F / H | |
| : | PN 6 / PN 10 / PN 16 / PN 25 / PN 40 / PN 64 | |
| : | DIN Standard / JIS Standard / IS Standard | |
| Manufacuring Size Range | : | 1" (DN25) to 8"(DN 200) |
| Pressure Rating of Valve | : | 150# |
| : | PN 10 / PN 16 / PN 25 |
MOC (Bill of Material - BOM) for Pot Body Bucket Type Strainer
| Body & Cover | : | ASTM A 126 GR. B / IS 210 GR. FG 200/220/260 (Cast Iron) / Ductile Iron / Nodular C.I. |
| : | ASTM A 216 GR. WCB (Cast Carbon Steel) | |
| : | ASTM A 351 GR. CF 8 / CF 8M (SS 304 / SS 316) | |
| : | ASTM A 351 GR. CF 3 / CF 3M (SS 304L / SS 316L) | |
| : | ASTM A 351 GR. CN7M / ASTM A351 Gr. CF8C | |
| : | ASTM A351 Gr. CD4Mcu / ASTM A351 Gr. CK3MCuN | |
| : | ASTM A352 Gr. LCA / LCB / LCC | |
| : | ASTM A217 Gr. WC1 / WC6 / WC9 / C5 / C12 | |
| : | ASTM A494 Gr. CW6MC / CW2M / CY40 / CU5MCuC | |
| : | NACE MR0175 / NACE MR | |
| Mesh / Filter Element | : | ASTM A 276 T - 304 / 316 (SS 304 / SS 316) |
| : | ASTM A 276 T - 304L / 316L (SS 304L / SS 316L) | |
| : | Brass / Alloy 20 | |
| : | Duplex Steel / Super Duplex Steel | |
| Gasket | : | SS 304/316 Spiral Wound with CAF/Graphite Filled |
| : | Graphited Asbestos wire based | |
| : | CAF - Compressed Asbestos Fibre | |
| : | Graphite Tensed Gasket | |
| : | PTFE | |
| Bolts / Stud & Nuts | : | ASTM A 193 GR. B7 / A 194 GR. 2H |
| : | S.S. 304/316/304L/316L |
Drawing / Dimensions of Pot Type Simplex Basket Strainer
