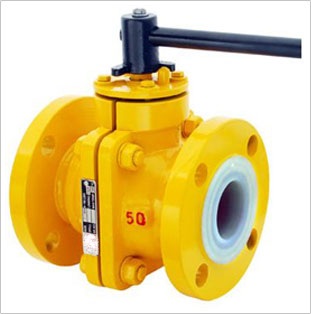

FEP, PFA, PTFE Lined Ball Valve Manufacturer, Exporter, Supplier, Stockist, Importer.
Two Piece Design, Full Bore, Fully Lined Zero Leakage Ball Valve
End Connection - Flanged End, Pressure Rating - Class 150 / 300
Operation - Manual Lever / Gear / Pneumatic / Electrical Actuator Operated
Model Series: PTFBL1 (Lever Operated)
Model Series: PTFBL1G (Gear Operated)
FEP, PFA, PTFE Lined Ball Valve Manufacturing Size Range: DN25/25mm/1"/One Inch, DN32/32mm/1-1/4"/One and Quarter Inch, DN40/40mm/1-1/2"/One and Half Inch, DN50/50mm/2”/Two Inch, DN65/65mm/2-1/2”/Two and Half Inch, DN80/80mm/3”/Three Inch, DN100/100mm/4”/Four Inch, DN125/125mm/5”/Five Inch and DN150/150mm/6”/Six Inch Size.
 |
Nivz Valves & Automation manufacturer and exporter in india of PTFE Lined Ball Valves for corrosion & acidic application. Nivz PTFE/FEP/PFA Teflon® lined valves are available from 1”(25NB) to 6”(150NB) We also supply PTFE Lined Ball Valve with Motorized Electrical Actuator Operated or Pneumatic Actuator Operated quarter turn valves., Nivz PTFE Lined floating ball Ball Valves are two piece design construction with integral stem with ball. Wide range of Body Material selection available like Cast Iron, S.G. Iron, Ductile Iron, Cast Carbon Steel, Stainless Steel 304 & 316 along with PTFE, PFA, FEP, Teflon® lining. PTFE Lined Ball Valve design short pattern face to face dimension is in as per ANSI B16.10 and ANSI B16.5, 150 Class. Application
|
Features of PTFE/FEP/PFA Lined 2 Piece Design Ball Valve
- Ball with Integral Stem design construction
- Valve Design Standard confirms to BS EN ISO 17292/BS531/ASME B 16.34
- Face to Face as per ANSI B 16.10
- Flange Drilling as per ANSI B 16.5/BS 10 Table D or E
- Manufacturing Size Range 1" to 6"
- Fully Body + Ball Lined with PTFE/FEP/PFA/Teflon®
- Body Construction in 2 Piece Construction
- Minimcum Cavity Body and Full Bore Design
- Low Operating Toruque
- Zero Leakage
- MOC option WCB/Ductile Iron/CF8/CF8M/CF3/CF3M
Design & Testing International Standard of PTFE Lined Ball Valve
| Design Standard | : | BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / BS EN 1983 / ASME B 16.34 |
| Inspection & Testing Standard | : | BS EN ISO 12266 - I (BS 6755 - I) |
| Flange To Flange Distance | : | As Per ANSI B 16.10 |
| End Connection | : | Flanged End to ANSI B 16.5, Class 150 |
| : | BS 10 Table D / E / F / H | |
| : | PN 6 / PN 10 / PN 16 / PN 25 / PN 40 / PN 64 | |
| : | DIN Standard / JIS Standard / IS Standard | |
| Manufacuring Size Range | : | 1/2" (DN15) to 6"(DN 150) |
| Pressure Rating of Valve | : | 150# / PN 10 / PN 16 |
| Valve Operation | : | Manual Hand Lever / Worm-Gear Actuator Operated |
| : | Pneumatic Rotary Quarter Turn Actuator / Electrical Actuator |
MOC (Bill of Material - BOM) for PTFE Lined Ball Valve
| Body / End Piece | : | ASTM A 126 GR. B / IS 210 GR. FG 200/220/260 (Cast Iron) / Ductile Iron / SG Iron |
| : | ASTM A 216 GR. WCB (Cast Carbon Steel) | |
| : | ASTM A 351 GR. CF 8 / CF 8M (SS 304 / SS 316) | |
| : | ASTM A 351 GR. CF 3 / CF 3M (SS 304L / SS 316L) | |
| : | ASTM A 351 GR. CN7M / ASTM A351 Gr. CF8C | |
| : | ASTM A351 Gr. CD4Mcu / ASTM A351 Gr. CK3MCuN | |
| : | ASTM A352 Gr. LCA / LCB / LCC | |
| : | NACE MR0175 / NACE MR | |
| Ball | : | ASTM A 351 GR. CF 8 / CF 8M (SS 304 / SS 316) |
| : | ASTM A 351 GR. CF 3 / CF 3M (SS 304L / SS 316L) | |
| : | ASTM A 351 GR. CN7M / ASTM A351 Gr. CF8C | |
| : | ASTM A351 Gr. CD4Mcu / ASTM A351 Gr. CK3MCuN | |
| Body Lining | : | PTFE / FEP / PFA / Teflon® |
| Stem | : | Integral with Ball |
| Ball Seat & BodySeal | : | PTFE Virgin / 25% Glass Fillted Teflon - GFT |
| Gland Packing | : | PTFE Virgin / 25% Glass Fillted Teflon - GFT |
| Teflon® is registered trademark of M/s. E.I. Dupont |
Click here to download drawing of PTFE Lined Ball Valves
