Tube Type Full View Sight Glass, Sight Flow Indicator - Manufacturer, Exporter, Supplier, Stockist, Large View Type Tubular, Toughen, Borosilcate, Soda Lime Glass in Ready Stock.
Cylindrical Tube Type Full View Sight Flow Indicator & View Glass
End Connection - Flanged End, Raised Face
Pressure Rating - 4 Bar Maximum

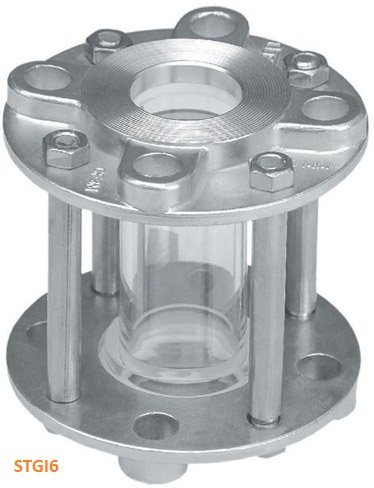

Stainless Steel Investment Casting Flange Tube Type Full View Sight Glass - STGI6

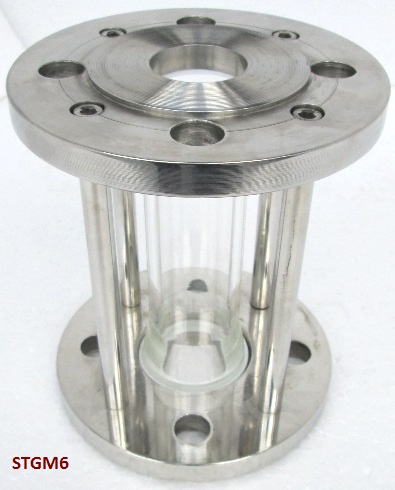

MS / CS / SS Plate Flange Tube Type Full View Sight Glass - STGM6
Tubular Type, Full View Sight Glass Flow - Indicator Manufacturing Size Range: DN25/25mm/One Inch, DN40/40mm/One and Half Inch, DN50/50mm/2”/Two Inch, DN65/65mm/2-1/2”/Two and Half Inch, DN80/80mm/3”/Three Inch, DN100/100mm/4”/Four Inch, DN125/125mm/5”/Five Inch, DN150/150mm/6”/Six Inch, DN200/200mm/8”/Eight Inch, DN250/250mm/10”/Ten Inch, DN300/300mm/12”/Twelve Inch size and more can manufacture and supply on request.
|
|
Sight Flow indicators - Sight Glass is used for monitoring flow in pipelines for a wide range of applications. Nivz Sight Glass suitable for various rugged industrial applications. These Sight Flow Indicators are bi-directional type and easy to install in any orientation. Sight Glass - Sight Flow Indicators provides a quick, reliable and economical way to verify the flow of liquids through industrial process pipe lines. Nivz Tubular Type Sight Glass available with different length of glass from 4” (100mm) to 8” (200mm) long. Nivz Sight Glass - Sight Flow Indicators has been designed with outstanding quality and the feature you need to streamline your operations. Full view types Sight Glass - Sight Flow Indicators are widely used for corrosive chemicals, acids and colored liquids. Sight Glass (Sight Flow Indicators) are generally used in processes, where spot required to detect presence of media, or to visual inspect color, clarity, turbidity, or other critical characteristics. Sight Glass can be installed vertically or horizontally in the middle of any kind of non transparent pipeline and are very convenient & easy to observe the flow from any direction. Nivz Valves offer Tube Type Full View Sight Glass, Sight Flow Indicator - Manufacturer, Exporter, Supplier, Stockist, Large View Type Tubular, Toughen, Borosilcate, Soda Lime Glass in Ready Stock |
Salient Features of Tubular Type Full View Sight Glass Flow Indicator
- Easy Maintenance
- Lower Cost
- Wide View Area to Inspect the Fluid
- Tempered Borosilicate glass standard
- Available in all most all M.O.C.
- Glass Length available from 100MM To 200MM
- Sizes Range from 15MM To 200MM
- Pressure Rating PN 6
- Design & Testing As Per Mfg. Standard
- Flange Drilling as per ANSI B 16.5 / BS 10 Table / DIN / IS Std.
MOC (Bill of Material - BOM) for Full View Sight Glass Flow Indicator
| Body Flange | : | ASTM A 516 GR. 60/70 Carbon Steel Plate |
| : | ASTM A 105 (Forged Carbon Steel) | |
| : | IS 2062 GR. A/B MS Plate | |
| : | ASTM A 240 TYPE 304/316 (Stainless Steel 304/316 Plate) | |
| : | ASTM A 240 TYPE 304L/316L (Stainless Steel 304L/316L Plate) | |
| : | ASTM A 182 F304/F316 (Forged Stainless Steel 304/316) | |
| : | ASTM A 182 F304L/F316L (Forged Stainless Steel 304L/316L) | |
| : | ASTM / ASME SA 240 - S 31803/S 32205/S 32550/S32750/S 32760 (Duplex Steel Plates) | |
| Pillar Rod | : | M.S. / C.S. |
| : | ASTM A 276 T - 304 / 316 (SS 304 / SS 316) | |
| : | ASTM A 276 T - 304L / 316L (SS 304L / SS 316L) | |
| Glass | : | Tempered Borosilicate |
| Gasket | : | PTFE Virgin |
| : | 25% GFT | |
| Bolts / Stud & Nuts | : | ASTM A 193 GR. B7 / A 194 GR. 2H |
| : | S.S. 304/316/304L/316L |
Nivz Valves & Automation, INDIA.
