Ball Valve Flanged and Threaded End

Ball Valve Manufacturer, Exporter, Stockist, Supplier, Importer, API 607, Fire Safe Design, Floating - Trunion Mounted Ball Valves.

Floating & Trunion Mounted Ball Valve, Lever / Gear / Pneumatic / Motorized  / Electrical / Remote Operated

Single Piece Design Regular/Reduce Bore Flanged End Ball Valve, Rating Class 150
Two Piece Design Full Bore Flanged End Ball Valve, Rating Class 150/300/600
Three Piece Design Full Bore Flanged End Ball Valve, Rating Class 150/300/600

Model Series: X1P15 (1 Piece Reduce Port)
Model Series: X2P15/30/60 (2 Piece Full Port)
Model Series: X3915/30/60 (3 Piece Full Port)

Single Piece / Two Piece / Three Piece Design Ball Valve Manufacturing Size Range:  DN25/25mm/1"/One Inch, DN32/32mm/1-1/4"/One and Quarter Inch, DN40/40mm/1-1/2"/One and Half Inch, DN50/50mm/2”/Two Inch, DN65/65mm/2-1/2”/Two and Half Inch, DN80/80mm/3”/Three Inch, DN100/100mm/4”/Four Inch, DN125/125mm/5”/Five Inch, DN150/150mm/6”/Six Inch, DN200/200mm/8”/Eight Inch, DN250/250mm/10”/Ten Inch, DN300/300mm/12”/Twelve InchSize and big more large size of ball valve can manufacture and supply on order basis.

Ball Valve, Flanged End, API 607, Fire Safe Design

A standard port ball valve does not have an oversized ball, and as a result the hole is one size smaller than the passageway. This presents a small amount of flow restriction as the fluid passes through the ball valve.

A reduced port ball valve, on the other hand, has an even smaller ball and an even smaller hole, which creates significant flow restriction as the fluid passes through the valve. All PTFE / Soft seated ball valve give Zero Leakage.

Nivz all types of Ball Valve Manufacturer, Exporter, Stockist, Supplier, Importer, API 607, Fire Safe Design, Floating - Trunion Mounted Ball Valves.

A ball valve can also be a three-way valve if a third hole is bored partially through the ball, until it meets the main hole, in a shape T or L. A three-way ball valve can shut off one or all of the three passageways it connects.

Four Way Ball Valve also used with Double L/X Port for Air/Co2/Nitrogen/Gas Dryer application. Fire Safe Design 2 Way / 3 Way / 4 Way Ball also used in Oil & Gas Sector.

Ball Valve confirms to ISO 17292/BS EN 1983/API 6D/ASME B 16.34

Nivz Ball Valves as per international design and standard to get 100% Client Satisfaction and repeat order with total interchangeability, superior quality, workmanship & service.

These Ball Valves available in Single Piece (1/2” to 4”) / Two Piece (1” to 12”) as well as in Three Piece Design (1/2” to 12”) to suit various critical, non-critical applications and pressure rating up to 800 class in both full bore & regular (reduce) bore design as per BS EN ISO 17292 (BS 5351) / BS EN 1983 / API 6D Standard Ball Valve Manufacturer - Exporter. Nivz Ball Valves are Fire Safe Design as per API 607 Standard.


single piece design regular bore ball valve flanged end hand lever operated      Ball Valve Manufacturer, Exporter, Stockist, Supplier, Importer, API 607, Fire Safe Design, Floating - Trunion Mounted Ball Valves.       three piece design full bore ball valve flanged end investment casting ic body construction

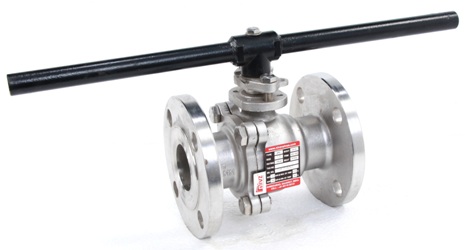

Single Piece Regular Bore   Two Piece Full Bore   Three Piece Full Bore


  two pice desing 1000 wog water oil gas media suitable application threaded end ball valve   full bore three piece design lever operated ball valve lever operated

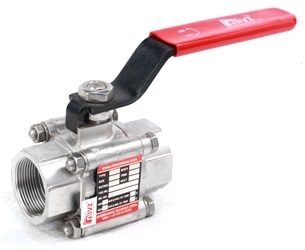

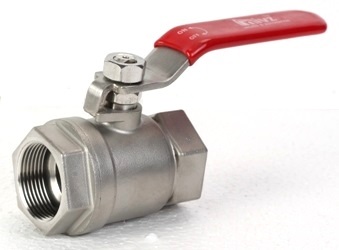

          Single Piece Full Bore, Threaded           Three Piece Full Bore, Threaded


Nivz P.T.F.E. soft seated Ball Valves gives Zero Leakage, Tight Shut-Off and Low operating torque with easy smooth operation at temperature ranging from -20 Deg. C. to +220 Deg. C. Electro-Polished, Buff Finish & Ultra clean valve also provided for Food & Pharmaceutical Industries on request.

Nivz Ball Valve body and trims material of construction covers ASTM A 106 GR. B (Cast Iron), ASTM A 216 GR. WCB (Cast Carbon Steel), ASTM A351 GR. LCB (Low Temperature Carbon Steel), ASTM A 351 GR. CF 8/CF 8M (S.S. 304/316), ASTM A 351 GR. CF 3/CF 3M (S.S. 304L/316L) and others on request.

Our team have more then 17 years of expereince in industrial valve, strainer, filter and valve automation. We can do provide any types of industrial valve automation as per client request.

Our manufacturing range coveres Pneumatic, Electrical, Motorized, Cyliner, Diaphragm Actuator, Air, Gas, Solenoid Operated Ball Valves. Our Ball Valves are ideal suitalbe for Industrial Apllication. We are regualr supplying Ball Valves to chemical industries, paper mill, cement mill, power plant, water treatement plants, steel plants, sugar mill etc.

Nivz Valves & Automation manufacturer and export High Quality Ball Valve in a special material grade like Duplex Steel D2205-4A, Super Duplex Steel, Hast Alloy C, Monel, Aluminium Bronze - AB2, A 351 CNTM - Alloy 20, CD4MCU and other on specific request.

Our specialized range of Ball Valve covers Extened Stem Ball Valve, Steam Jacketed Ball Valve, 3 Way Ball Valve, 4 Way Ball Valve, Fire Safe Design Ball Valve, Multiport Ball Valve, Mixing and Diverter type Ball Valve, V Notch Ball Control Valve, Remote Operated Ball Valves, High Pressure Ball Valve, Actuated Ball Valves the can be Pneumaticaly or Electrical. All stainless steel ball valve made from Investment Casting in size of valve up to 150NB.

Floating / Trunion Mounted Ball Valve

Nivz Valves & Automation manufacturing both Floating & Trunnion Mounted Ball Valves. In the floating ball design, where sealing takes place by allowing the Ball under pressure to move towards the downstream seat to effect tight seal. For higher sizes and pressure ratings Trunnion mounted ball valves are preferred by industry. Floating Ball Valve up to 6" x 150# & 4" x 300# above size all valve we do provide Trunnion Mounted Design Ball Valve.

We are also manufacure Ball Valves with Electro-Pneumatic Rotary Quarter Turn Actuator Operated, Single Acting Spring Return Actuator Operated Steel Ball Valve, Double Acting Pneumatic Acuated Ball Valve, Electrical Actuator operated Ball Valve, Remoted Actuated Ball Valve, Motorized Ball Valve, High Pressure Ball Valve Manufacturers, Forged High Pressure Ball Valve suitable for pressure up to 10000 psig.

Our range covers pneumatic actuated ball valve with Limit Switches for visual On/Off Indication and PLC feed back along with Solenoid Valve, Air Filter Regulator, Relay, Silencer, Valve Positioners.  Dharmi also manufacturers of Ball Control Valves and supplying V Notch Ball Control Valve along with accessries Pneumatic Type Valve Positioner, Electro-Pneumatic Type Valve Positioner, Smart Positioner with HART, Air Filter Regulator, Limit Switches, Solenoid Valve with Manual Override to operate valve in case of failure of electrical or pneumatic. Gear Actuator Operated Ball Valve, Manual Overrided Actuator Operated Ball Valves manufacture on order basis

fire safe ball valve seat design arrangement how it works

Fire Safe Ball Valve Seat Design

Nivz Fire safe design Ball Valves is conformance to API 607 / BS EN ISO 12666 - II (BS 6755 Part I) assures highest standard of safety and also offers to supply valves with third party inspection or customer inspection on request. We have an experience of 3rd Party Fire Safe Test Inspection with DNV, Bureau Veritas, IRS, Tata Projects Ltd. etc.

Material of Body Seat, Seal & Gland Packing
Nivz Ball Valves are also available with different type of Seat, Seal & Packing material such as P.T.F.E. (Virgin) / 25% Glass Filled P.T.F.E. / Carbon Filled P.T.F.E. / Graphite (Grafoil) / PEEK to suit special requirement of client. Nivz standard ball valves are manufacturing with PTFE Virgin Seat Ring.

Features of Ball Valve

Special Option for Ball Valve

Design & Testing International Standard of Ball Valve

Design Standard : BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / BS EN 1983 / ASME B 16.34 / API 6D
Inspection & Testing Standard : BS EN ISO 12266 - I (BS 6755 - I)
Fire Safe Testing Standard : BS EN ISO 12266 - II /  API 607
Flange To Flange Distance : As Per ANSI B 16.10 / Tailor Made on Request
End Connection : Flanged End to ANSI B 16.5, Class 150 / 300 / 600
  : BS 10 Table D / E / F / H
  : PN 6 / PN 10 / PN 16 / PN 25 / PN 40 / PN 64
  : DIN Standard / JIS Standard / IS Standard
Manufacuring Size Range : 1/2" (DN15) to 12"(DN 300)
Pressure Rating of Valve : 150# / 300# / 600#
  : PN 10 / PN 16 / PN 25 / PN 40 / PN 64
Valve Operation : Manual Hand Lever / Worm-Gear Actuator Operated
  : Pneumatic Rotary Quarter Turn Actuator / Electrical Actuator

MOC (Bill of Material - BOM) for Ball Valve

Body & Insert : ASTM A 216 GR. WCB (Cast Carbon Steel)
  : ASTM A 351 GR. CF 8 / CF 8M (SS 304 / SS 316)
  : ASTM A 351 GR. CF 3 / CF 3M (SS 304L / SS 316L)
  : ASTM A 351 GR. CN7M / ASTM A351 Gr. CF8C
  : ASTM A351 Gr. CD4Mcu / ASTM A351 Gr. CK3MCuN
  : ASTM A352 Gr. LCA / LCB / LCC
  : NACE MR0175 / NACE MR
Ball : ASTM A 351 GR. CF 8 / CF 8M (SS 304 / SS 316)
  : ASTM A 182 F304 /  F316 (SS 304 / SS 316)
  : ASTM A 351 GR. CF 3 / CF 3M (SS 304L / SS 316L)
  : ASTM A 182 F304L /  F316L (SS 304L / SS 316L)
  : ASTM A 351 GR. CN7M / ASTM A351 Gr. CF8C
  : ASTM A351 Gr. CD4Mcu / ASTM A351 Gr. CK3MCuN
Stem : ASTM A 276 T - 304 / 316 (SS 304 / SS 316)
  : ASTM A 276 T - 304L / 316L (SS 304L / SS 316L)
  : ASTM A 276 T - 410 (SS 410)
Ball Seat & BodySeal : PTFE Virgin / 25% Glass Fillted Teflon - GFT / Carbon Filled Teflon - CFT
  : PEEK / Delrin / Grafoil - Graphite Ring
Gland Packing : PTFE Virgin / 25% Glass Fillted Teflon - GFT / Carbon Filled Teflon - CFT
  : Grafoil - Graphite Ring

Click here to download drawing of Ball Valves

download ball valve threaded end three piece design drawing
