High Performance Ball Valve

High Performance Ball Valve Manufacturer, Zero Leakage, Economizer Type Ball Valve Exporter, Stockist, Supplier. Online Seat Change Provision, Reduce Port Fire Safe Design Ball Valve

Low Torque Regular Bore Ball Valves

Reduce Port, 3 Piece Body, Floating Ball as per Design Standard ISO 17292/7121/BS 5159/API 6D
End Connection - Threaded / Screwed (BSP/NPT - Female) / Socket Weld /  Butt Weld


Model Series: NV4466
Model Series: NV4466-FI (Fire Safe Design Ball Valve)
Model Series: NV4466-FS (Forged Steel Body Ball Valve)

3 Piece Design Ball Valve Manufacturing Size Range:  DN15/15mm/Half Inch, DN20/20mm, DN25/25mm/One Inch, DN40/40mm/One and Half Inch, DN50/50mm/2”/Two Inch Size.

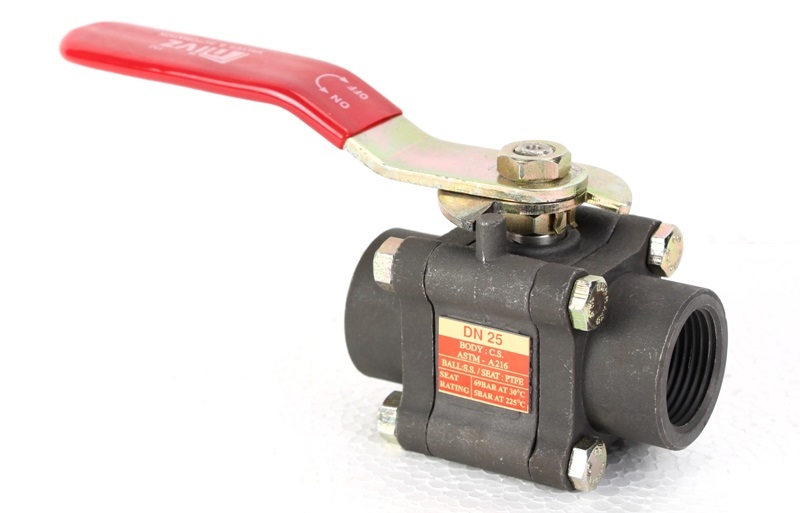

Zero Leakage High Performance Low Torque 3 Piece Design Regular Bore Ball Valve

Nivz manufacturer and exporter High Performance, Economiser Series, Lower Torque, Regular Port Ball Valve design as per BS EN ISO 17292 & Testing as per BS EN ISO 12266-I. Fire Safe Ball Valve testing as per API 607 / BS EN ISO 12266-II.

NV4466 Ball Valve design covers to replace Ball Seat Ring online without dismantling of valve from line, you dont need to remove threaed or remove welding from pipe line.

By removing three body connector bolts and loosening the fourth, the body can be swing away using the fourth bolt as the fulcrum, to carry out any installation or maintenance operation on the valve.

Ball Valve all internal parts are 100% machined on CNC machine to get 100% customer quality satisfaction, interchangability and long life trouble free operation.

Low Torque Ball Valves are available in threaded end BSP as well in NPT thread. Valve Body & End Piece made from Investment Casting (I.C., Lost Wax Process).

Body material options are ASTM A 216 GR. WCB (Cast Carbon Steel), ASTM A 351 GR. CF8/CF8M/CF3/CF3M (Stainless Steel 304/316/304L/316L).


Features

Simply 3 Piece Design Body Construction, Online Change Ball Seat & Seal Ring

Nivz High Performance Ball Valve design main features are very easily to do maintenance in their class. Only by the removing of Three Nos. of Body - End Piece Connector Bolt - Nut and loosening the fourth one, the body can swung away using the fourth in the bolt as fulcrum, to replace a Ball Seat, Seal or do maintenance. This facility save your maintenance time.

Online Seat Change Provision Type Low Torque Zero Leak Ball Valve

Blow-Out Proof Stem
Nivz all Ball Valves have bottom entry stem design which features stem insertion from inside the body. An integral shoulder on the stem sits against the shoulder into the body, giving it blow-out proof integrity. In case of higher pressure line, functioning as the back seat for assured stem sealing. The design offers safety features superior to top-entry stem design where the line pressure works to break the stem seating.

Mirro Finished Stainless Steel Ball
All stainless steel ball are manufactured to very close spheriocity tolerance and are mirror finished to achiever lower torque value and smooth performance, trouble less smooth operation.

 Floating Ball
NV4466 Series Low Torque Ball Valve ball design offers efficient sealing with simple construction. As the same indicates, the ball has some freedom to move along with axis of the pipeline, which offers efficient downstream sealing. When line pressure is applied to the closed ball, it moves slightly downstream to maintain contact with the downstream seat where primary sealing occurs. A quarter turn motion from full open to full close ensures quick open-close action, an inherent advantage for automation remote control application. Floating Ball Valve offers effective bidirectional sealing.

PTFE Seat Ring with Slots
Seat Rings have slots provide to relieve the pressure past the upstream seat and prevent it from being forced against the ball. These type of design help to achieve lower torque and allow high differential pressure and reduce wear, besides extending.

Ball Valve ptfe spare seat ring supplier stockist manufacturer exporter


Design & Testing International Standard of Ball Valves


Design Standard : BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / ASME B 16.34
Inspection & Testing Standard : BS EN ISO 12266 - I (BS 6755 - I)
Flange To Flance Distance : Mfg. Std.
End Connection : Screwed - Threaded End to ANSI B 1.20.1 (BSP/NPT) Female
  : Socket Weld End to ANSI B 16.11
  : Butt Weld End to ANSI B 16.25
Manufacuring Size Range : 1/2" (DN15) to 2" (DN50)
Pressure Rating of Valve : 150# / 300# / 400# / PN 10 / PN 16 / PN 25 / PN 40
Valve Operation: : Manual Hand Lever / Pneumatic Actuator Operated
Leakage Class : Class VI (Zero Leakge)

Material of Construction (Bill of Material - BOM) for Floating Ball Valve



Body & Insert : ASTM A 216 GR. WCB (Cast Carbon Steel)
  : ASTM A 351 GR. CF 8 / CF 8M (SS 304 / SS 316)
  : ASTM A 351 GR. CF 3 / CF 3M (SS 304L / SS 316L)
  : ASTM A 105 (Forged Carbon Steel)
Ball : ASTM A 351 GR. CF 8 / CF 8M (SS 304 / SS 316)
  : ASTM A 182 F304 /  F316 (SS 304 / SS 316)
  : ASTM A 351 GR. CF 3 / CF 3M (SS 304L / SS 316L)
  : ASTM A 182 F304L /  F316L (SS 304L / SS 316L)
Stem : ASTM A 276 T - 304 / 316 (SS 304 / SS 316)
  : ASTM A 276 T - 304L / 316L (SS 304L / SS 316L)
  : ASTM A 276 T - 410 (SS 410)
Body Seat & Seal : PTFE Virgin / 25% Glass Fillted Teflon - GFT / Carbon Filled Teflon - CFT
  : PEEK / Delrin / Grafoil - Graphite Rign
Gland Packing : PTFE Virgin / 25% Glass Fillted Teflon - GFT / Carbon Filled Teflon - CFT
  : Grafoil - Graphite Ring
Hand Lever : C.S. / S.S.

Dimensions of Regular Bore Floating Ball Valve



   3 Piece Design Ball Valve Drawing Dimensions Catalogue

Download ball valve general arrangement drawing
